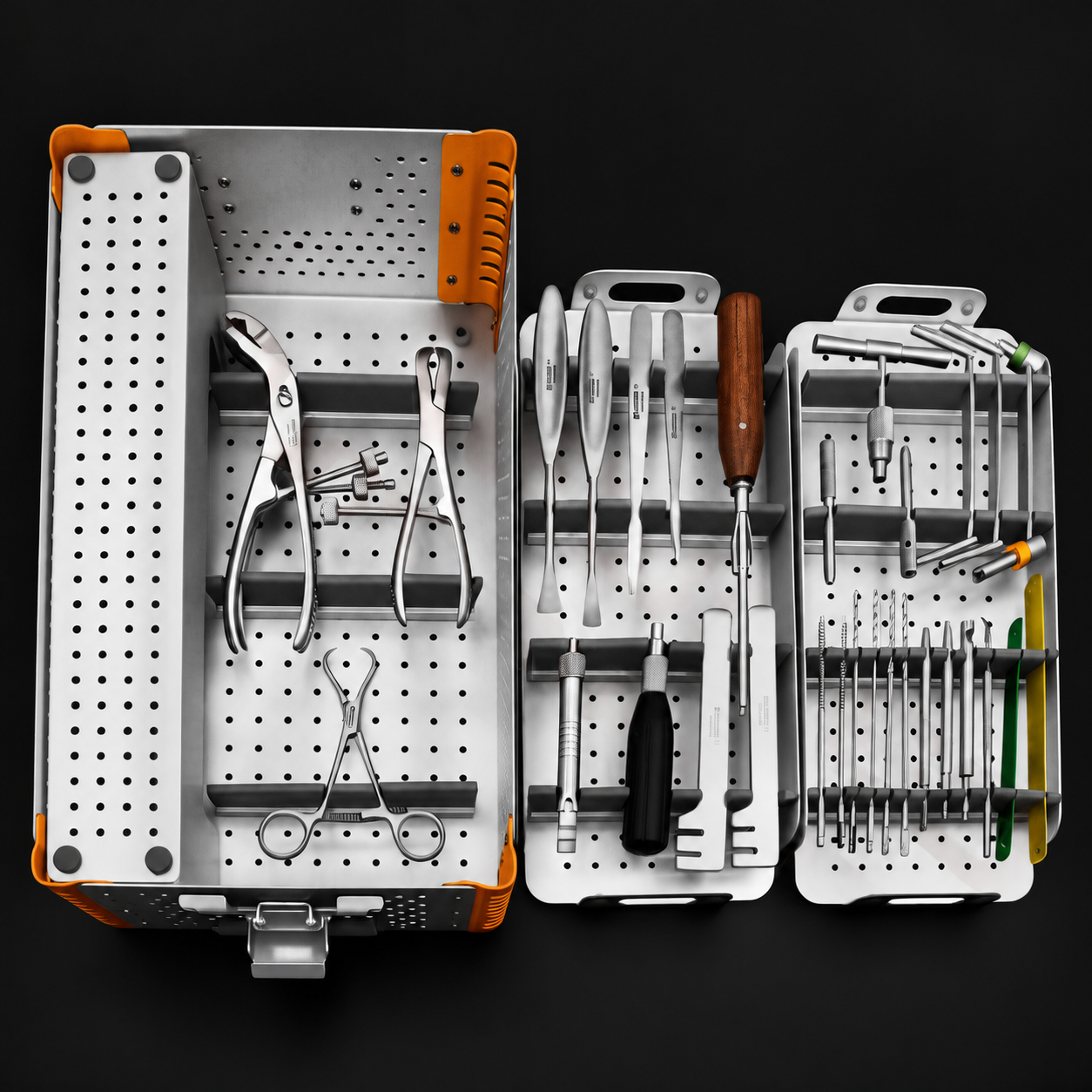

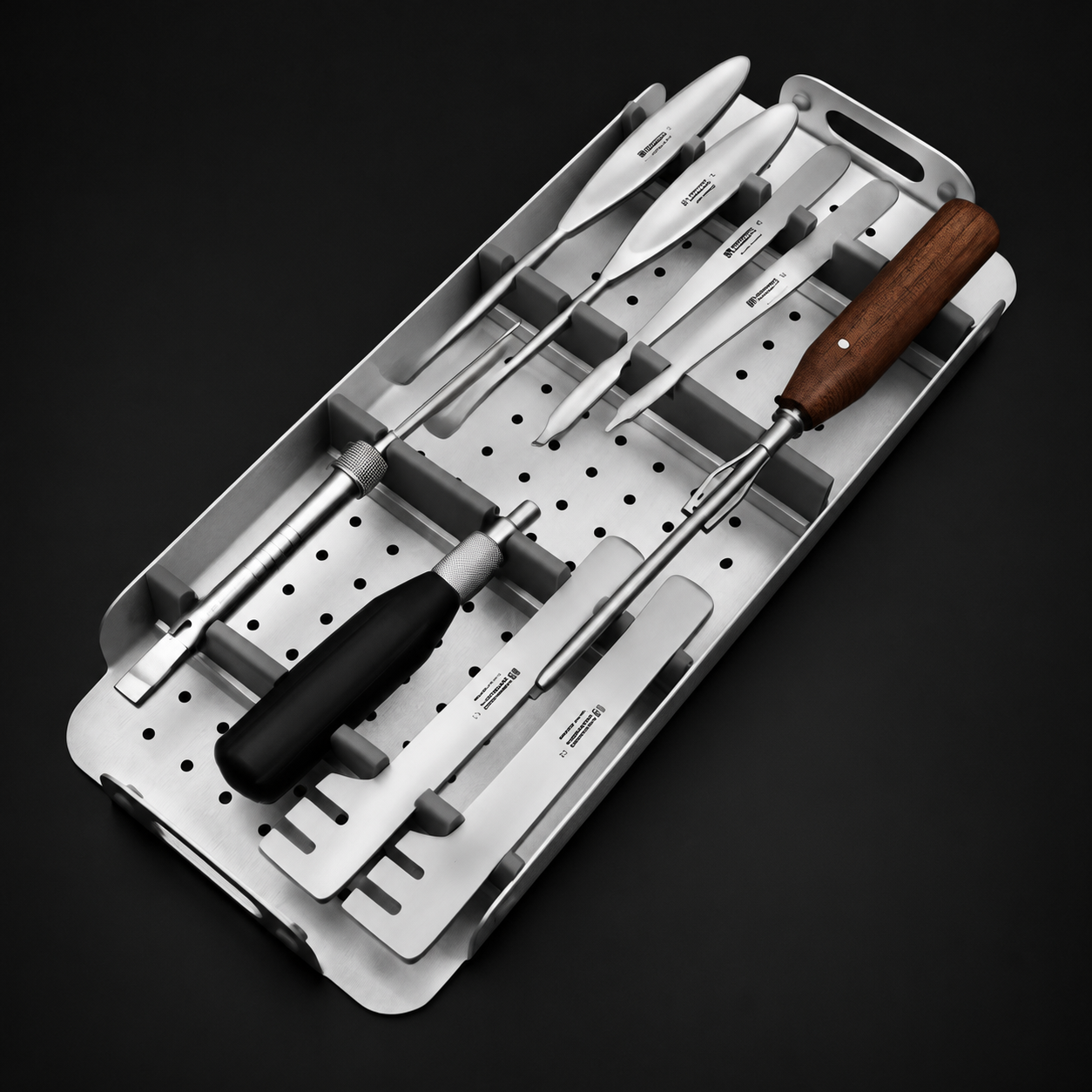

Large Fragment Set
- Used for the reduction and fixation of large bone fractures.
- Assists in accurate bone alignment and stabilization during surgery.
- Supports drilling, measuring, tapping, and implant placement procedures.
- Commonly used in orthopedic trauma and reconstructive surgeries.
- Helps achieve stable fixation and promotes effective bone healing.
- 46 instruments of Large fragement set.
- Fully approved to be used in the Operating Room
- Certified by FDA, CE, and ISO
- Crafted with Medical Grade Stainless Steel
- Fully Reusable / Autoclavable.
- Lifetime Warranty.
- Shipping Worldwide
Shipping calculated at checkout.
- Fast Shipping
- Ready to Help
Request a Quote

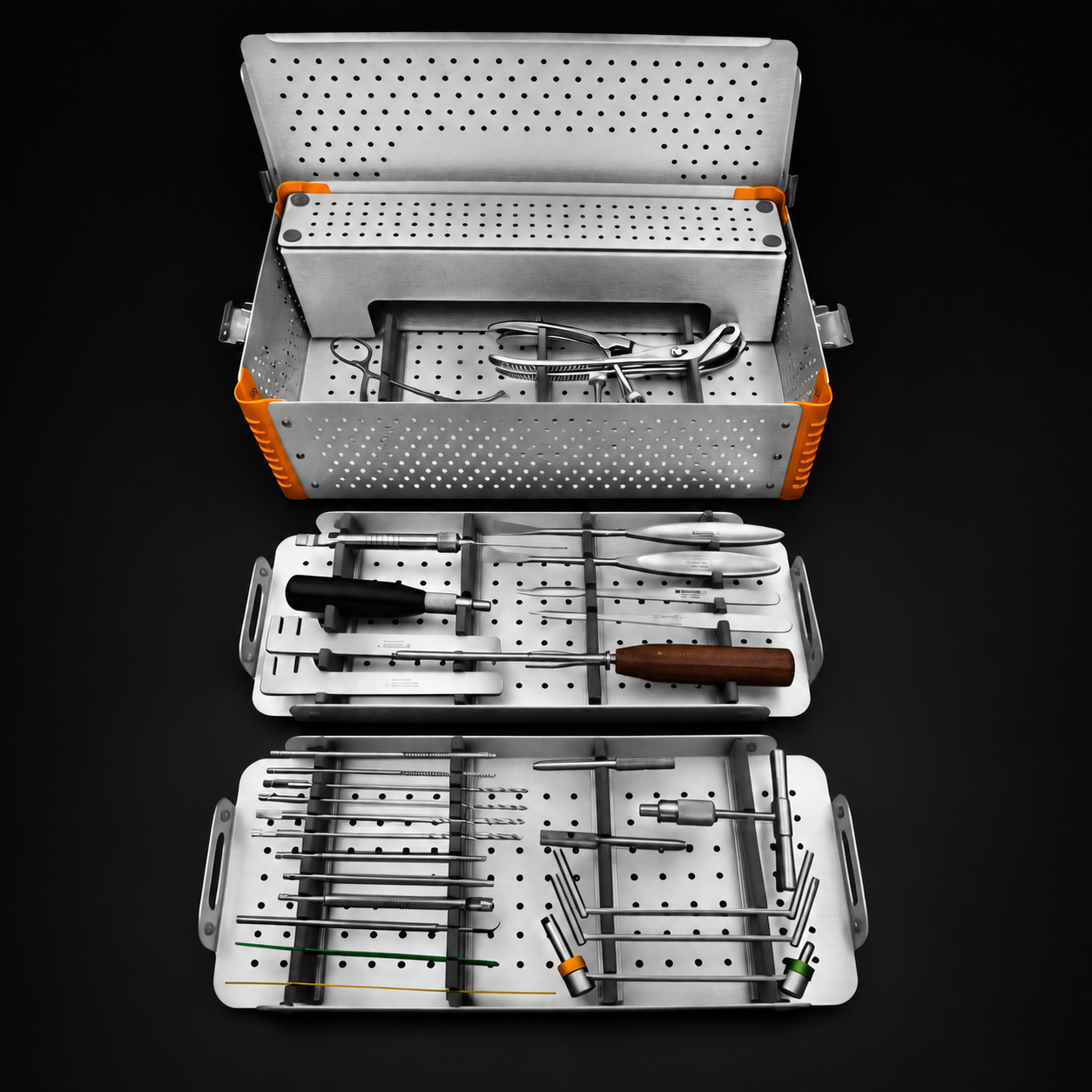

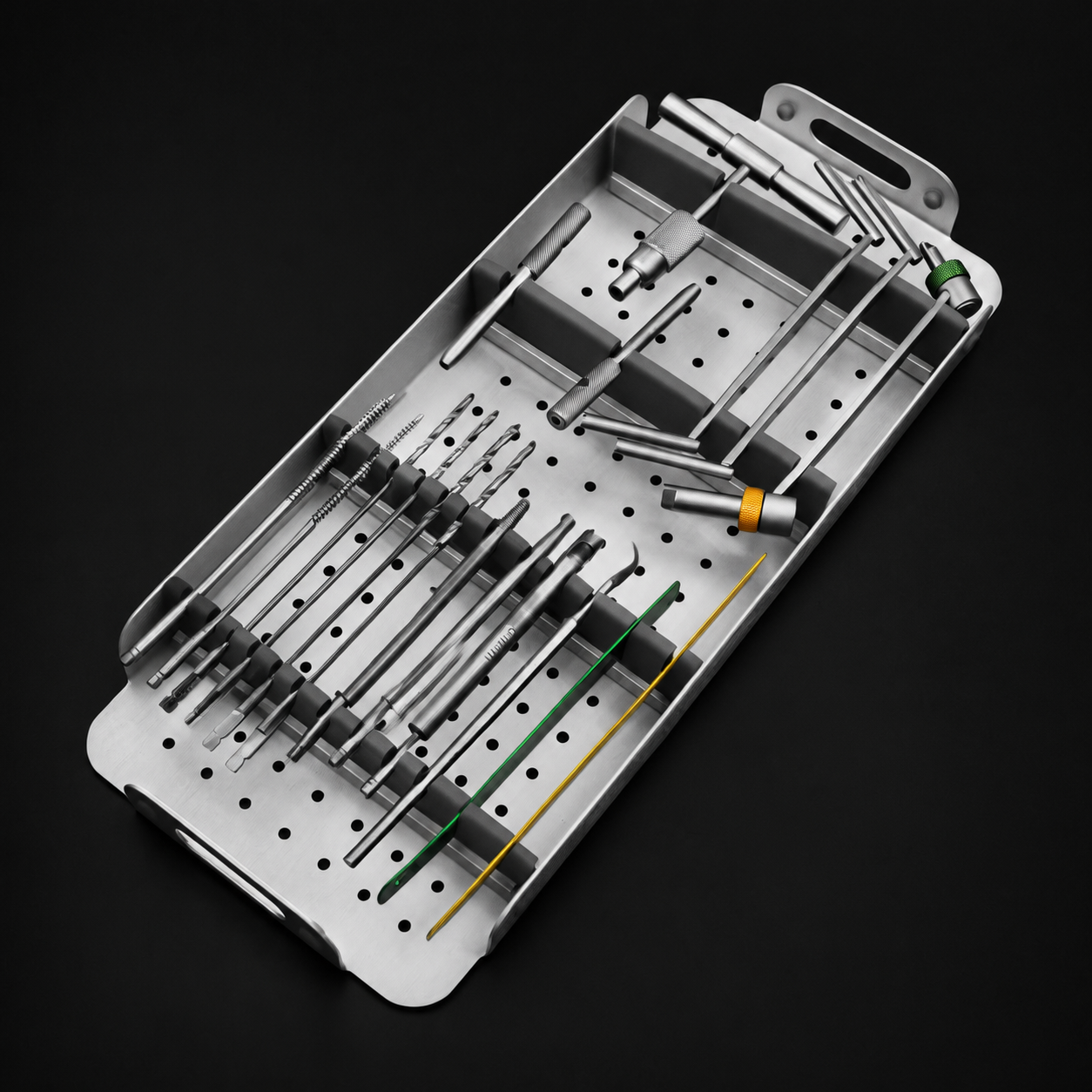

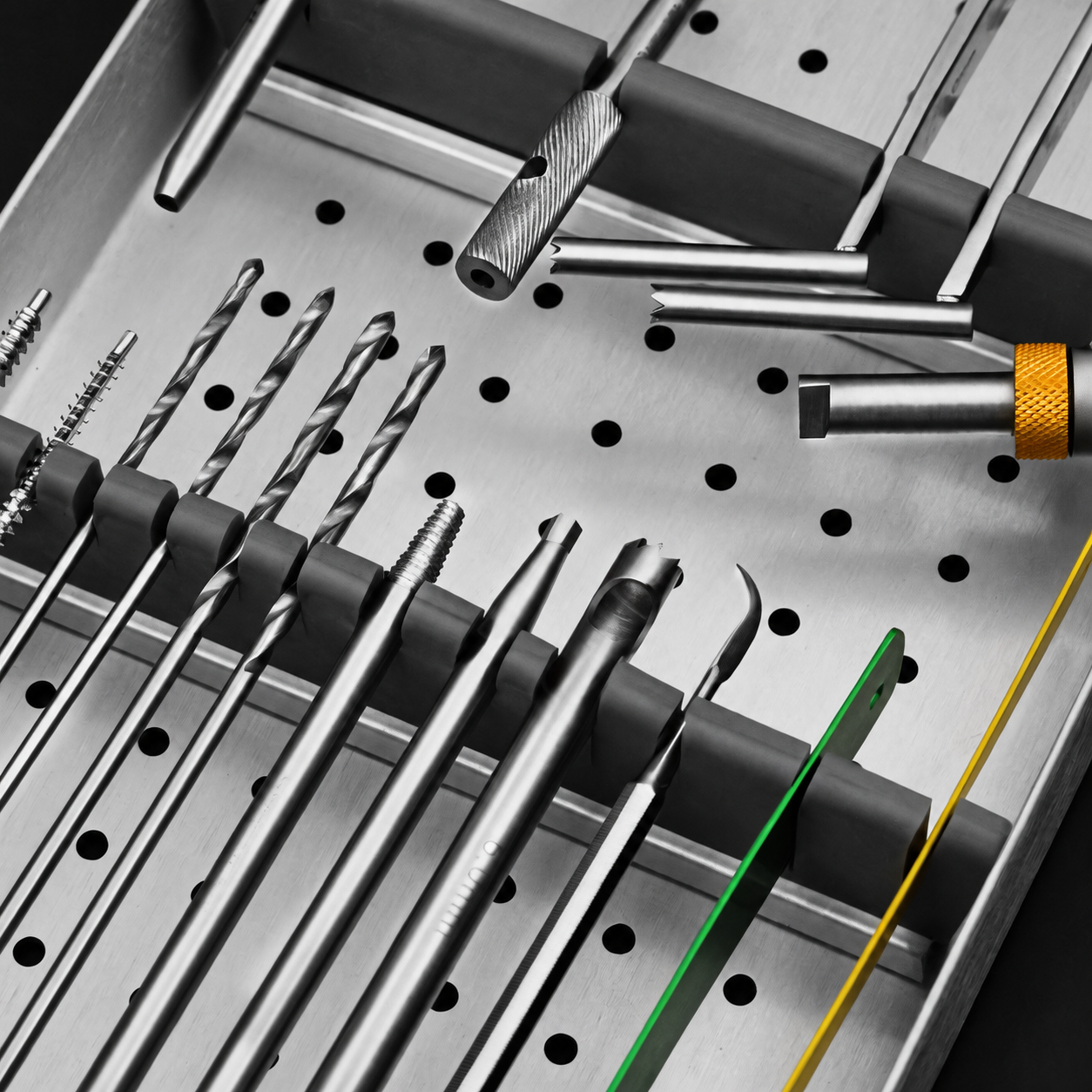

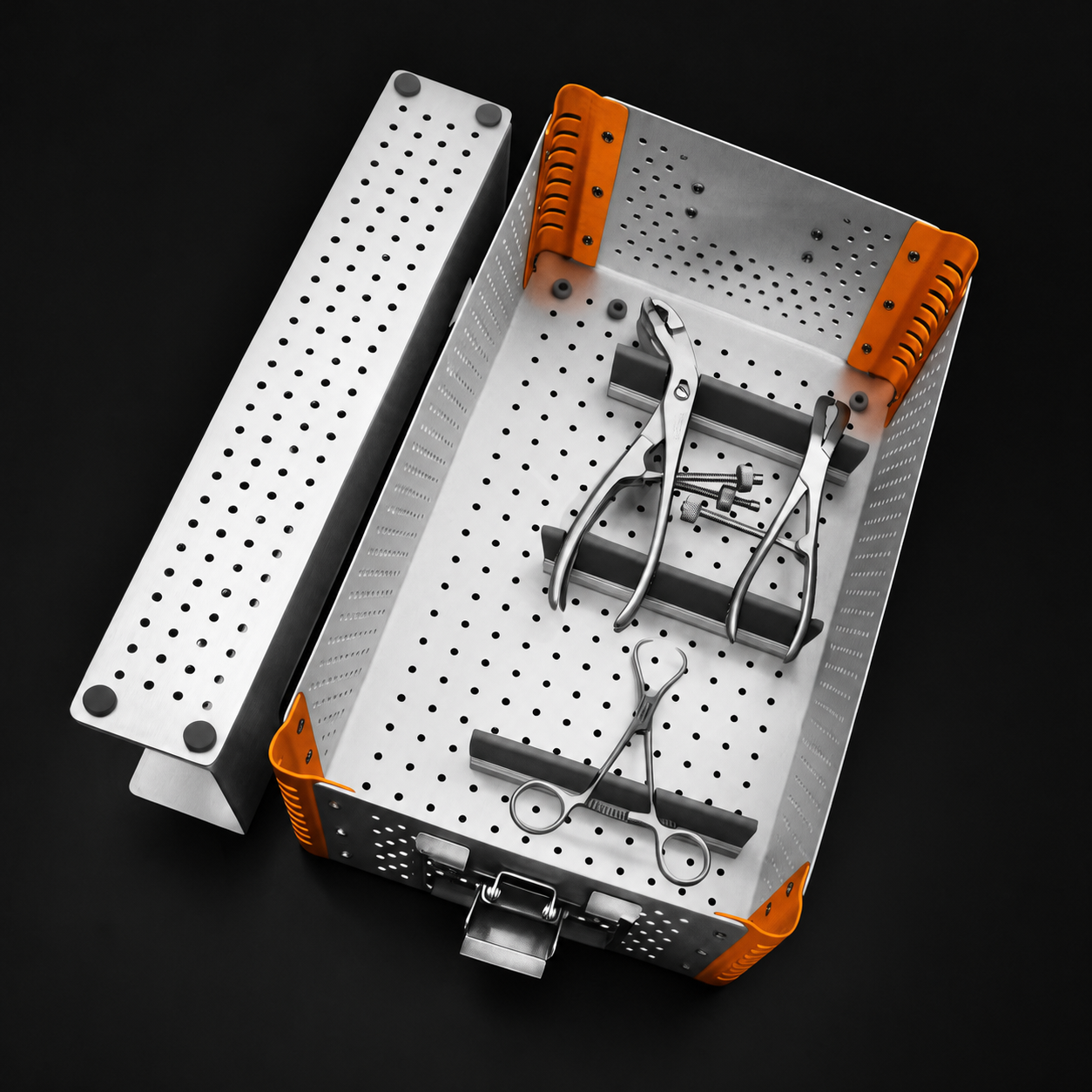

Large Fragment Instrument Set is developed for the reduction, stabilizing, and fixation of large bone fractures, especially fractures occurring on the major bones like femur, tibia, and humerus. This set is provided with all the required instrumentation for bone reduction, drilling, measurement, tapping, and fixation of implants in orthopedic trauma surgery. Providing an accurate fracture alignment and stability, this set ensures great control and precision to the surgeons dealing with difficult bone fractures.
Used in trauma and reconstructive orthopedic surgeries. It is used for the fixation of complex bone fractures, osteotomy, and bone reconstructions.
- Crafted with Premium surgical-grade German Stainless Steel to ensure durability, corrosion resistance, and long life.
- Fully Reusable, designed to withstand frequent sterilization and autoclaveable procedures.
| Details | Sizes | Item Codes | QTY |
| Allen Key for Dill Bit Stopper | AADI52920 | 1 | |
| Depth Gauge | 15 cm, Measuring range upto 120 mm | 778565103 | 1 |
| Countersink | 3.5/4.0 mm screws | 778565102 | 1 |
| Double Drill Sleeve (Universal Drill Guide) | 3.5 / 4.5 mm | 778565116 | 1 |
| Double Drill Sleeve (Universal Drill Guide) | 2.7/4.5 mm | 778565116A | 1 |
| Drill Guide Sleeve | 12.7 cm, 3.2 mm drill bits | 778565111 | 1 |
| K wires Single Trocar Threaded | 30 cm, 25 mm, sharp, pointed tip | 778565277 | 5 |
| Standard Quick Connect Drill Bit | 13 cm, 3.5 mm, round shaft | 778565106 | 2 |
| Standard Quick Connect Drill Bit | 13 cm, 4.5 mm round shaft | 778565106A | 2 |
| Standard Quick Connect Drill Bit with Stopper | 22 cm, 4 mm round shaft | 778565106B | 2 |
| Drill Guide neutral /load | 4.5 mm | 778565109 | 1 |
| Hohmann Retractor | 40 cm, 22 mm width, slim flat handle | AA-GRZX-12354 | 1 |
| Insert Drill Sleeve | 4.5 mm | 778565112 | 1 |
| Periosteal Elevator Fiber Handle | 18 cm, 5 mm | AADI52921 | 1 |
| Periosteal Elevator Fiber Handle | 21 cm, 10 mm | AADI52921 | 1 |
| Plate Bending Template | AADI52926 | 3 | |
| Bone Plate Bender | 7 3/4", 5 mm, straight blade | AADI52922 | 2 |
| Bone Reduction Forceps with K-wires | 17 cm, 1.6 mm, Pointed Ratchet Lock | 774859 | 1 |
| Bone Holding Forceps with Speedlock | 18 cm, Serrated Ratchet Lock | 786541 | 1 |
| Self-Centering Bone Holding Forceps | 24 cm, speed lock | 7913654 | 2 |
| T-Handle Broken Screw Extraction | 15.24 cm, 5 mm | AADI12535 | 1 |
| Hexagonal Driver Screw holding sleeve | 18 cm, 3.5 mm tip | AADI52932 | 1 |
| Torque Driver Screw | 5 mm locking Screw | AADI52923 | 1 |
| Screw Holding Forceps | 18 cm, 4 mm, serrated tips | AADI52924 | 1 |
| Quick Coupling Driver Screw | 5 mm locking, 4.5 mm cortical screw | AADI52931 | 1 |
| T-Handle Quick Coupling | 15 cm, 80 mm | AADI52930 | 1 |
| Sharp Hook | AADI52929 | 1 | |
| Quick Coupling Tap | 4.5 mm cortical screw | AADI52925 | 1 |
| Quick Coupling Tap | 6.5 cancellous screws | AADI52925 | 1 |
| Threaded Drill Guide | 6 cm, drill bit 4.3 mm | AADI52928 | 3 |
| Trephine Bone T-Handle | 18 cm, 80 mm, straight shaft | AADI52927 | 1 |
| Aluminium Box | 480 mm x 200 mm x 100 mm LxWxH | AAD0045603 | 1 |
